BL8506-22NRM BL8506-20CRM BL8506-30CRM 电压检测器/复位IC

所在地区: 北京

最后更新: 2026-01-19

详细信息

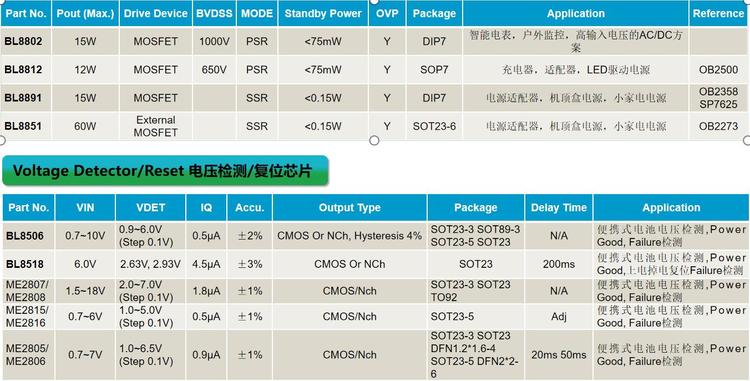

产品简介：BL8506 is a series of high precision voltage detector with ultra low current consumption (500nA typ. at Vdd=3.0V). It can work at very low voltage, which makes it perfect for system reset. BL8506 is composed of high precision voltage reference, comparator, output driver and resistor array. Internally preset detect voltage has a low temperature drift and requires no external trimming. Two type of output, CMOS and N-channel open-drain are available. BL8506 is available in SOT-89-3, SOT-23-3, TO92, SOT23-5 packages which are Pb free.

产品特点：

·High-precision detection Voltage： 2%
·Detection Voltage：0.9V~6.0V (in 0.1Vsteps)
·Precise hysteresis：4% typ.
·Operating Voltage range：0.7V~10V
·Ultra-low current consumption：500nA typ. (at VDD＝3.0V)
·Two Output Forms ：CMOS(Active Low) and N-channel open-drain(Active Low)
